SNAP® MULTIGATE

Your selection
  • remove selection
  • M 16 / PG 9
  • M 20
  • M 25
  • M 32
Your selection
  • remove selection
  • 16,5
  • 20,5
  • 25,5
  • 32,5
Your selection
  • remove selection
  • 1 - 4,0
Your selection
  • remove selection
  • 24,0
  • 27,5
  • 32,5
  • 41
Your selection
  • remove selection
  • -
  • 1 x 8,0
Your selection
  • remove selection
  • 12,0
  • 12,75

Productfilter

previous next

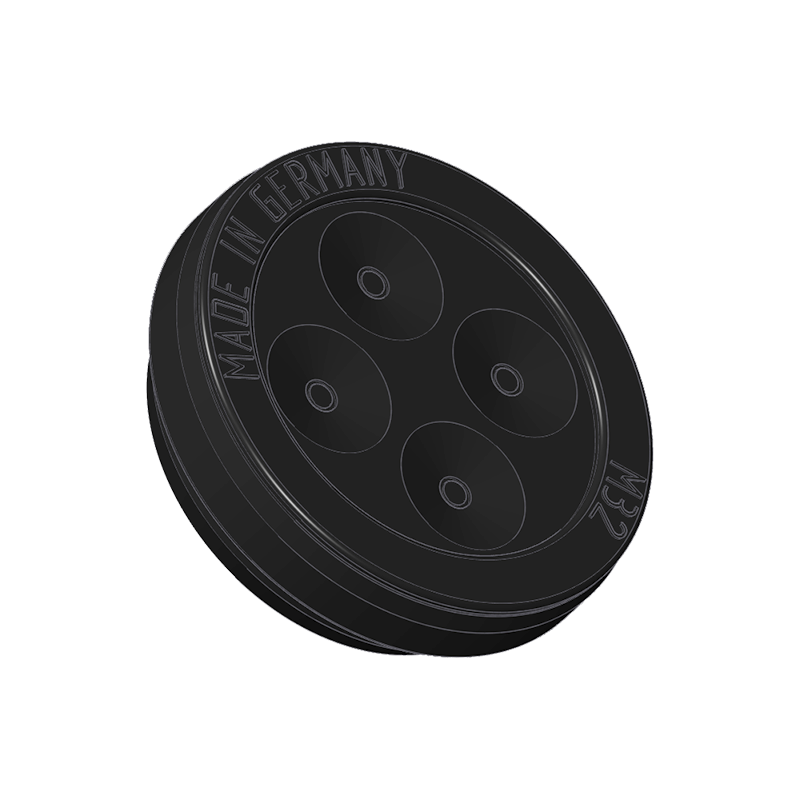

technical drawing
EPDM-Material
  • uv and ozone resistant
  • chemicals resistent
  • temperature range -40°C...+130°C

General measuring tolerances (DIN ISO 3302, section 2 M2F)

All Measurements in millimeters (mm)

Errors excepted

Download the datasheeht as PDF
Article
No.
Nominal
size
Hole Ø
Panel
thickness
Total Ø
Inner Ø
Inner Ø
Total
height
Material /
Color
Select
sample
3100

M 16 / PG 9

16,5

1 - 4,0

24,0

1 x 8,0

3 x 2,5

12,0
EB

EG

3101

M 20

20,5

1 - 4,0

27,5

-

-

12,0
EB

EG

3102

M 25

25,5

1 - 4,0

32,5

-

-

12,0
EB

EG

3103

M 32

32,5

1 - 4,0

41

-

-

12,75
EB

EG

  • EB = EPDM, black
  • EG = EPDM, gray
