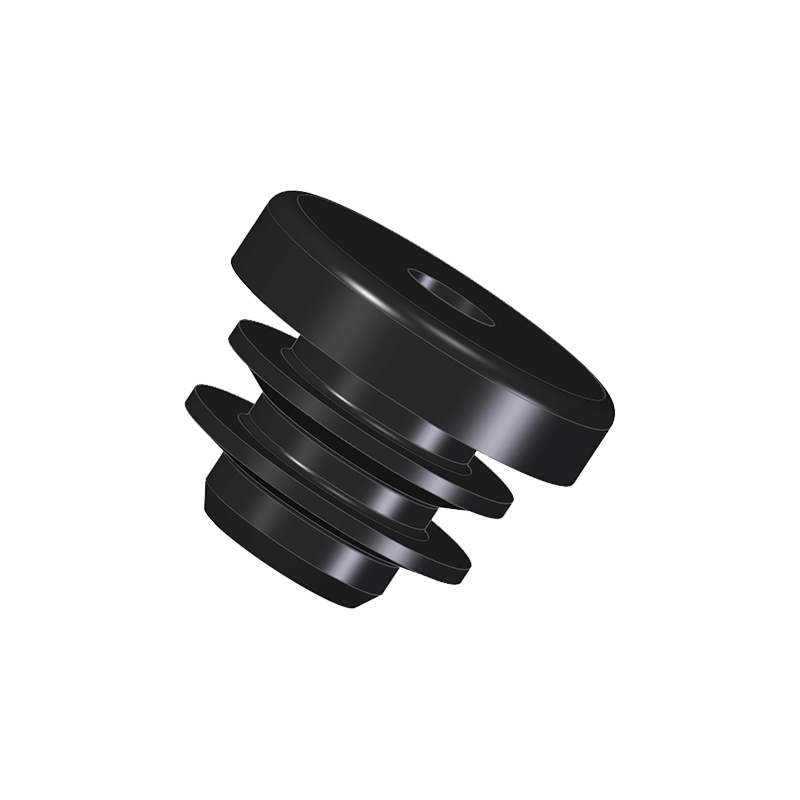

TAMPÕES DE LAMELAS

Your selection
  • remove selection
  • M 5
  • M 6
  • M 8
  • M 10
  • M 12
  • M 16
  • M 20
  • M 24
Your selection
  • remove selection
  • 4,0 - 5,5
  • 5,5 - 7,0
  • 7.0 - 8,5
  • 8,5 - 10,0
  • 10,0 - 12,0
  • 12,0 - 16,0
  • 16,0 - 20,0
  • 20,0 - 24,0
Your selection
  • remove selection
  • 8,0
  • 9,0
  • 10,5
  • 12,0
  • 14,0
  • 18,0
  • 25,0
  • 30,0
Your selection
  • remove selection
  • 2,5
  • 2,8
  • 3,0
  • 4,0
  • 5,5
  • 6,0
Your selection
  • remove selection
  • 7,00
  • 9,80
  • 13,70
  • 17,00
Your selection
  • remove selection
  • 3,50
  • 4,50
  • 6,50
  • 7,50
  • 8,80
  • 10,60
  • 12,90
  • 16,70

Productfilter

previous next
EPDM-Material
  • uv and ozone resistant
  • chemicals resistent
  • temperature range -40°C...+130°C

General measuring tolerances (DIN ISO 3302, section 2 M2F)

All Measurements in millimeters (mm)

Errors excepted

Article
No.
Nominal
size
Diameter
range
Head Ø
Head
height
Shaft
length
Shaft Ø
Blind
hole Ø
Material /
Color
Select
sample
1611

M 5

4,0 - 5,5

8,0

2,5

7,00

3,50

1,50

EB

NB

SR

1612

M 6

5,5 - 7,0

9,0

2,8

7,00

4,50

1,50

EB

NB

SR

1613

M 8

7.0 - 8,5

10,5

3,0

7,00

6,50

1,70

EB

NB

SR

1614

M 10

8,5 - 10,0

12,0

3,0

7,00

7,50

2,00

EB

NB

SR

1615

M 12

10,0 - 12,0

14,0

3,0

7,00

8,80

3,00

EB

NB

SR

1616

M 16

12,0 - 16,0

18,0

4,0

9,80

10,60

4,00

EB

NB

SR

1617

M 20

16,0 - 20,0

25,0

5,5

13,70

12,90

6,30

EB

NB

SR

1618

M 24

20,0 - 24,0

30,0

6,0

17,00

16,70

9,30

EB

NB

SR

  • EB = EPDM, black
  • NB = NBR, black
  • SR = Silicon, red
